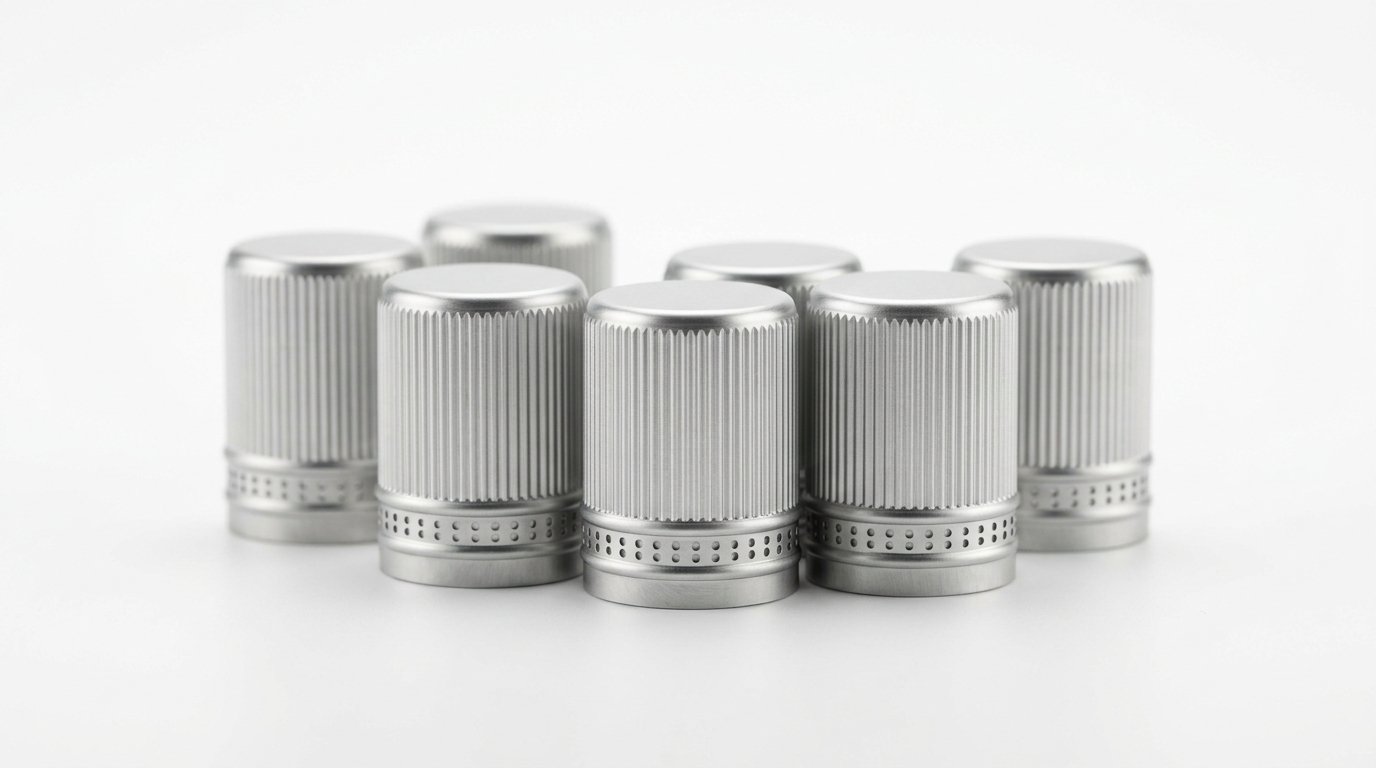

SankalpR Vision manufactures aluminium ROPP caps in 28/15 mm, the working size for Indian packaged drinking water and beverages, in two closures: Aqua Cap for packaged drinking water and Bev Cap for beverages. Both have a TPE liner, are rated to 8 bar, suit hot fill, cold fill and carbonated products, and adhere to USFDA and EU standards. Minimum orders start at 50,000 caps in plain silver, with a lead time of 4 to 6 weeks. ROPP stands for roll-on pilfer-proof.
What a ROPP cap is
A ROPP cap is an aluminium closure supplied as a smooth, unthreaded shell. During capping, threading rollers press the aluminium into the bottle’s neck profile while a top block compresses the liner, so the thread is formed on each bottle rather than moulded to an average. A scored pilfer band at the base tucks under the neck’s locking ring and breaks on first opening, which is the built-in tamper evidence. For the full mechanism, see what is a ROPP cap, and for the acronym, ROPP cap full form.
ROPP cap sizes: the standard range
ROPP closures are made in a standard range of diameters from 18 mm to 70 mm, each matched to a neck finish. R Vision manufactures 28/15 mm. The other sizes are listed as industry reference so you can see where your bottle sits, and R Vision does not supply them.
| Diameter | Typical use in India | R Vision |
|---|---|---|
| 18 mm, 20 mm | Pharma syrups, small essence and flavouring bottles | Reference only |
| 22 mm | Liquor miniatures, syrups | Reference only |
| 25 mm | 180 ml and 250 ml liquor bottles | Reference only |
| 28 mm | Packaged drinking water, carbonated soft drinks, juices | Manufactured: 28/15 mm |
| 30 mm | Spirits, extra deep finish with a tall skirt | Reference only |
| 31.5 mm | Indian made foreign liquor, glass bottles for free flowing liquids | Reference only |
| 38 mm | Edible oils, wide-neck food bottles | Reference only |
| 46 mm to 70 mm | Wide-mouth jars | Reference only |
Skirt heights, the neck finish behind each diameter and which size suits which product are set out in full on the ROPP cap size chart. The 28 mm size has its own page, 28mm ROPP caps.
The R Vision range
R Vision’s range covers the two closure jobs its customers ask for most: sealing water and sealing beverages. Both products share the 28/15 mm size and the 8 bar pressure rating, and both run on standard roll-on application machinery, so a bottling line can run either without changing capping hardware.
Aqua Cap (packaged drinking water)
Aqua Cap is the water closure. It uses a tamper-evident three-part break-system ring and a TPE liner, and it suits hot fill, cold fill and carbonated products. It is aimed at premium and niche packaged drinking water brands that want a metallic closure on the shelf and visible proof that the seal is intact. Sizes, MOQ and machinery questions are answered in the Aqua Cap FAQ.
Bev Cap (beverages)
Bev Cap is the beverage closure. Its pilfer-proof ring stays attached to the cap after opening, so the bottle can be resealed while the tamper evidence remains visible. It uses a PVC-free TPE liner and comes in three ring variants: Round Ring, Two Slit and Five Slit. It suits carbonated soft drinks and juices and RTD beverages, and bottlers’ questions are collected in the Bev Cap FAQ.
Choosing between the two is a question of tamper system and product, and Aqua Cap and Bev Cap compared puts them side by side.
Specifications
Both closures share the size, shell, liner material, pressure rating and supply terms. They differ in the tamper ring and the top decoration.
| Specification | Aqua Cap | Bev Cap |
|---|---|---|
| Application | Packaged drinking water | Beverages |
| Size | 28/15 mm | 28/15 mm |
| Cap material | Aluminium | Aluminium |
| Ring material | PE (polyethylene) | PE (polyethylene) |
| Liner | TPE | TPE, PVC-free |
| Pressure rating | Up to 8 bar | Up to 8 bar |
| Tamper ring | Three-part break-system ring | Ring stays attached, so the bottle reseals |
| Ring variants | Break-system | Round Ring, Two Slit, Five Slit |
| Fills | Hot fill, cold fill, carbonated | Hot fill, cold fill, carbonated |
| Neck finishes | MCA I/II/III, MCA 7.5 R, MCA 7.5 RF, PET BPF | MCA I/II/III, MCA 7.5 R, MCA 7.5 RF, PET BPF |
| Machinery | Standard roll-on application machinery | Standard roll-on application machinery |
| Standards | Adhering to USFDA and EU standards | Adhering to USFDA and EU standards |
| Shelf life | Two years from manufacturing date | Two years from manufacturing date |
Each closure’s specification is laid out as a single printable table on the ROPP cap specification sheet.
Liner options
R Vision lines both closures with TPE (thermoplastic elastomer), and Bev Cap’s liner is specified PVC-free. Across the wider ROPP market, closures are also lined with PVC-based compounds and PE or EPE foam wads, and those materials are set side by side in EPE, PE, PVC and pulp liners compared. Why beverage brands are moving off PVC is covered in why PVC-free liners matter.
Pressure rating
Both closures are rated to 8 bar. A carbonated drink pushes outward on the closure, and that pressure climbs as the pack warms in a godown or a closed truck, so the rating is set above what the drink reaches in normal storage. What an 8 bar pressure rating means explains the figure, and closures for carbonated soft drinks covers the wider brief for a CSD line.
Tamper band
The two closures take different approaches to tamper evidence. Aqua Cap’s three-part ring breaks apart on first opening, which is the at-a-glance signal a water buyer looks for. Bev Cap’s ring breaks but stays with the closure, so a drink finished over an hour can be closed again with the evidence still visible; that design is covered in resealable tamper-evident caps. Either band only works if the cap and the capping head are both in specification, and why tamper bands fail separates the two causes.
Finish and decoration options
Both closures can be supplied plain silver, in brand colours, or litho printed. The top panel is where most branding goes.
| Surface | Aqua Cap | Bev Cap |
|---|---|---|
| Top | Plain, litho printed, embossed | Plain, litho printed, hot foiling |
| Side | Plain, litho printed | Plain, litho printed |
| Colour | Matched to brand | Matched to brand |
Artwork, colour matching and what each decoration adds to the order are covered in custom printed and embossed bottle caps.
Order quantities, lead time and packing
R Vision’s minimum order steps with decoration, because a colour run adds a coating pass and litho printing needs plates cut for the artwork.
| Order type | Minimum order quantity | Lead time |
|---|---|---|
| Plain silver | 50,000 | 4 to 6 weeks |
| Plain colours | 200,000 | 4 to 6 weeks |
| Litho printed | 300,000 | 4 to 6 weeks |
Caps are packed in PE bags inside export-grade corrugated cartons. Store cartons between 5 and 30 °C and rotate against the manufacturing date, since shelf life is two years from that date. Carton counts and storage practice are covered in packing and storage for aluminium closures.
How a first order runs from sample to despatch is set out in bulk ROPP cap orders, and why the tiers exist in what MOQ means for bottle caps. Water brands buying direct will find the Aqua Cap terms in water bottle caps wholesale. For pricing, what drives ROPP cap cost explains each line of a quote, and buyers shipping outside India can read exporting ROPP caps from India.
How to enquire
To get samples or a quote, send the bottle’s neck finish drawing or a sample bottle, the product and whether it is carbonated or hot filled, the volume you expect to order, and the decoration you want. For Bev Cap, ask for all three ring variants in the sample set so the choice is made on your own capping head. Answers to the questions buyers usually ask first, on sizing, liners and machinery, are collected in the ROPP closures FAQ.
R Vision Pvt. Ltd is at E-13/7/5, MIDC Malegaon, Sinnar, Nashik 422 113, Maharashtra, phone +91 72620 02754. The company is described in the R Vision company profile and the plant in inside our Nashik plant. If you are still comparing suppliers rather than closures, how to choose a ROPP cap manufacturer in India sets out what to match first. Send your enquiry through contact R Vision.
Frequently asked questions
What does ROPP stand for?
ROPP stands for roll-on pilfer-proof. It describes an aluminium cap whose thread is rolled onto the bottle during capping, with a scored pilfer band that breaks on first opening to show tamper evidence.
What ROPP caps does R Vision make?
R Vision makes two ROPP closures: Aqua Cap for packaged drinking water and Bev Cap for beverages. Both are 28/15 mm aluminium closures with a TPE liner, rated to 8 bar, adhering to USFDA and EU standards.
What sizes do ROPP caps come in?
The standard ROPP range runs from 18 mm to 70 mm in diameter, including 22, 25, 28, 30, 31.5 and 38 mm. Packaged drinking water and soft drinks in India mostly use 28 mm, and spirits often use 30 mm or 31.5 mm. R Vision manufactures 28/15 mm only.
Do R Vision’s ROPP caps handle carbonated drinks?
Yes. Both closures are rated to 8 bar and suit carbonated products as well as hot fill and cold fill. The rating sits above the pressure a carbonated drink reaches in normal and warm storage.
What is the minimum order for R Vision ROPP caps?
The minimum order is 50,000 caps in plain silver, 200,000 in plain colours and 300,000 litho printed. Lead time is 4 to 6 weeks from a confirmed order.
What liner do R Vision’s ROPP caps use?
Both closures use a TPE (thermoplastic elastomer) liner. Bev Cap’s liner is specified PVC-free, which removes the plasticiser migration question for beverage brands.
Sources
- Bureau of Indian Standards, IS 7511 (Part 4): 1986, Roll-on Threads Pilferproof, for the standard roll-on pilferproof finish sizes.
- Bureau of Indian Standards, IS 1662: 1974, Glass Liquor Bottles, for finish diameters on liquor bottles.
