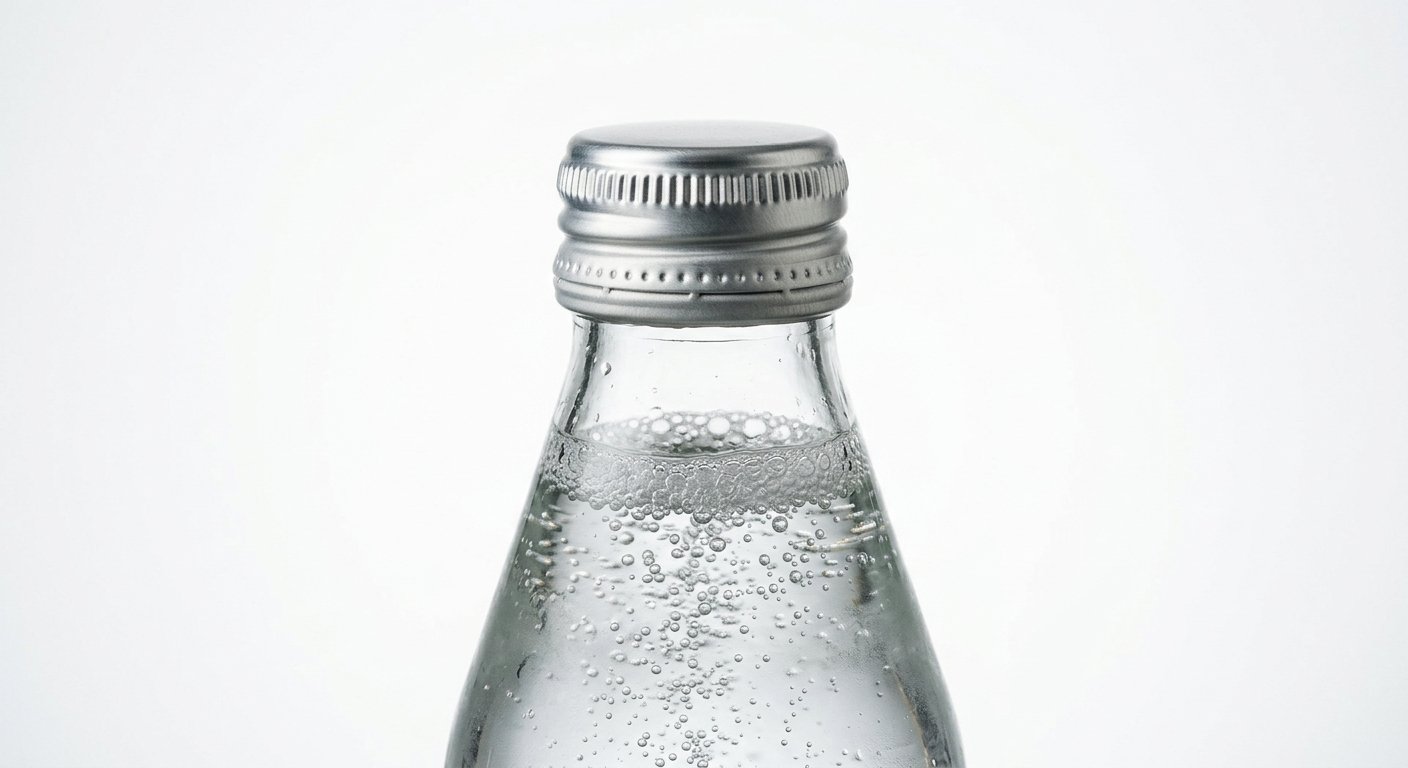

SankalpAn 8 bar pressure rating means a bottle closure can hold up to about 8 atmospheres of internal pressure without leaking or blowing off. Bar is a unit of pressure, and 1 bar is roughly normal atmospheric pressure at sea level. For beverages this rating matters most for carbonated drinks, which build pressure inside the bottle, so an 8 bar closure gives a wide safety margin over the pressure a fizzy drink actually reaches. Bottlers do not order carbonation in bar, though. They order it in volumes of CO2, and the bridge between the two is temperature. It is one of the figures quoted alongside diameter and height in the ROPP cap size chart.
What “bar” measures
Bar is a unit of pressure. One bar is close to the pressure the atmosphere exerts at sea level, so it is an easy everyday reference:
- 1 bar is roughly normal air pressure around us.
- 8 bar is about eight times that, a substantial internal force pushing outward on the closure.
When a drink is carbonated, dissolved carbon dioxide comes out of solution and pushes against the inside of the bottle and cap. The closure has to hold that outward force for the whole shelf life, through handling, transport, and temperature swings. The pressure rating tells you how much force the closure is built to contain.
Volumes of CO2, and how they turn into bar
The beverage industry measures carbonation in volumes of CO2, not in bar. One volume is one litre of carbon dioxide gas dissolved in one litre of liquid, which comes to close to two grams per litre. Both units are used on published finish data sheets and they describe the same thing: CETIE’s data sheet for the GME 30.40 neck finish states its carbonation capacity as up to 10.2 g CO2/l, and gives the same figure as 5.2 volumes.
Volumes describe the drink. Bar describes what the drink is doing to the closure at a given moment, and those are not the same number. The unit of volume is defined at a reference temperature and at atmospheric pressure, so a carbonation figure quoted without a temperature is incomplete. Hold the carbonation level constant and warm the pack, and the equilibrium pressure in the headspace rises: gas that stayed in solution when the bottle was cool comes out of solution and pushes on the cap.
That is the relationship a bottler has to keep in mind. Read the pressure for your carbonation level off a carbonation table at the temperature your packs will actually see, not at the temperature they were filled at. In India that gap is large. A pack filled cool in a plant and then stacked in an uncooled godown through a Maharashtra summer, or sitting in a closed truck, arrives at the top of its pressure range while carrying exactly the carbonation it left with.
Why carbonated drinks need a pressure rating
Still water and juice sit at ordinary pressure, so their closures mainly have to stop leaks and keep air out; those are usually 28mm ROPP caps with a liner matched to a cold fill. Carbonated products are different. The dissolved gas creates real internal pressure, and that pressure rises when the drink warms up or is shaken. If the closure and its liner cannot hold it, the cap can weep gas (the drink goes flat) or, in the worst case, fail.
So a pressure rating is a beverage-specific requirement, and closures for carbonated soft drinks covers the wider CSD brief, while what is a CSD closure defines the format itself. It tells a filler that the closure will keep a carbonated drink sealed and fizzy from the line to the consumer, not just at the moment of filling but across the shelf life.
What 8 bar covers
Carbonated soft drinks sit well below 8 bar in normal storage. The rating is set above the pressure a fizzy drink is expected to reach, so it builds in a margin for warm storage, agitation, and handling. The rows below are ordered by how hard the closure is working, which is essentially an ordering by temperature.
| Situation | What happens to headspace pressure | Within an 8 bar rating? |
|---|---|---|
| Still water or juice | Stays at around atmospheric | Comfortably |
| Chilled carbonated drink | The lowest point in the pack’s life | Comfortably |
| Same drink at Indian ambient warehouse temperature | Higher, at the same carbonation level | Yes, with margin |
| Same drink in a hot godown or a closed truck | Higher again | Yes, and this is the case the margin exists for |
| Same drink, warm and then shaken | Highest, briefly | Yes, still inside the rating |
The point of the rating is the margin. Real carbonated products do not sit at 8 bar; the closure is rated to 8 bar so that even under warm, agitated conditions the seal holds well inside its limit. Where that margin is lost slowly rather than suddenly, the cause is a gas leak at the rim: how closures prevent carbonation loss covers that failure mode, and common ROPP capping defects the line settings behind it.
The neck finish carries a rating too
A closure rating is only half the interface. The neck finish it seals on is rated as well, and on a CSD line the two are specified together. The published finishes are worth knowing by name because a preform supplier, a bottle supplier and a closure supplier all use them to describe the same joint.
| Designation | Published by | Carbonation position |
|---|---|---|
| PCO 1810 | ISBT Threadspecs | 28 mm PET screw finish for carbonated soft drinks, the older and taller of the pair |
| PCO 1881 | ISBT Threadspecs | 28 mm PET screw finish for carbonated soft drinks, the shorter and lighter successor to 1810 |
| 26/22 GME 30.40 | CETIE, GME series | 26/22 mm PET screw finish, one thread start, rated to 10.2 g CO2/l (5.2 volumes) on bottles up to 2.0 litres |
| 28/15 | ROPP notation | 28 mm neck diameter and 15 mm cap height, the R Vision size |
Two things about that table matter in practice. The first is that PCO 1810, PCO 1881 and GME 30.40 are PET finishes taking plastic closures. They are listed here as industry reference, not as R Vision products; R Vision manufactures aluminium roll-on closures in 28/15 mm only. The second is that the difference between PCO 1810 and PCO 1881 is finish height, with 1881 the shorter of the two. That height difference is where the lightweighting saving in the neck comes from, and it also sets how tall the closure sealing on it can be. The two are not interchangeable, which is the same rule that governs any neck code and is explained in neck finish codes and cap sizes.
Read together, the finish rating and the closure rating answer different questions. The finish rating says how much carbonation the neck geometry is designed to retain. The closure rating says how much pressure the cap will hold. A CSD pack needs both to be adequate, and the weaker of the two governs.
The liner does the sealing under pressure
A pressure rating is a property of the whole closure, but the liner carries the sealing job. Under internal pressure, the soft liner has to stay pressed against the bottle rim and not let gas escape around the edge. This is why the liner is matched to the product: a liner suited to carbonated drinks holds the seal under pressure, while a foam liner made for still products would not. What a cap liner is covers the sealing disc, and bottle cap liner materials compares TPE, PE foam and the rest. The shell holds the closure together, the pressure rating states the limit, and the liner is what actually keeps the gas in.
R Vision closures and the 8 bar rating
Both R Vision closures are rated to 8 bar. The Aqua Cap, an aluminium ROPP closure for packaged drinking water with a TPE liner, is rated to 8 bar and suits hot fill, cold fill, and carbonated products. The Bev Cap, an aluminium ROPP beverage closure with a PVC-free TPE liner, is also rated to 8 bar. Both adhere to USFDA and EU standards, so the pressure headroom sits alongside a food-safe sealing surface for water and beverage lines. Both are 28/15 mm, a size you can check against your own bottle by following how to measure bottle cap size.
Frequently asked questions
What does 8 bar mean on a bottle cap?
It means the closure is built to hold up to about 8 atmospheres of internal pressure without leaking or failing. Bar is a unit of pressure, and 1 bar is close to normal atmospheric pressure. An 8 bar rating gives a wide margin over the pressure a carbonated drink actually reaches in storage and handling.
How do volumes of CO2 relate to bar?
Volumes describe how much gas is dissolved in the drink, and bar describes the pressure that gas exerts on the closure. One volume is one litre of carbon dioxide per litre of liquid, close to two grams per litre. The conversion between the two depends on temperature, because at a constant carbonation level the headspace pressure rises as the pack warms. Read the pressure off a carbonation table at your storage temperature rather than your filling temperature.
Why do carbonated drinks need a pressure-rated closure?
Because dissolved carbon dioxide creates real internal pressure that pushes outward on the cap, and that pressure rises when the drink warms or is shaken. A pressure-rated closure and liner hold this force so the drink stays sealed and fizzy across its shelf life. Still products do not build this pressure, so they do not need the same rating.
Is 8 bar enough for soft drinks?
Yes. Carbonated soft drinks sit well below 8 bar in normal storage, and the pressure rises with temperature but stays under that figure. An 8 bar rating is set above the expected pressure on purpose, so it builds in a safety margin for warm storage in an uncooled godown, for transit in a closed vehicle, and for agitation.
Do PCO 1881 and PCO 1810 affect the pressure rating?
They are neck finishes rather than closures, so they do not set the cap’s rating, but they do sit on the other side of the same seal. Both are 28 mm PET finishes for carbonated soft drinks, with PCO 1881 the shorter and lighter successor to PCO 1810. They take plastic closures, not aluminium roll-on caps, so a bottler running either of them is buying a different closure format from a 28/15 mm ROPP cap.
Does the liner affect the pressure rating?
Yes. The liner is the soft disc that seals against the bottle rim, and under pressure it has to stay pressed to the rim without letting gas escape. A pressure rating applies to the whole closure, but the liner does the actual sealing, which is why a liner suited to carbonated products is essential for a pressure-rated cap.
Sources
- ISBT Threadspecs, the International Society of Beverage Technologists, for the PCO 1810 and PCO 1881 28 mm CSD finish drawings, published as voluntary and royalty-free guidelines.
- CETIE finish data sheets (GME) for GME 30.40, the 26/22 mm single-thread-start PET screw finish for carbonated beverages, rated to 10.2 g CO2/l (5.2 volumes) on bottles up to 2.0 litres, and for the g/l to volumes conversion used above.
