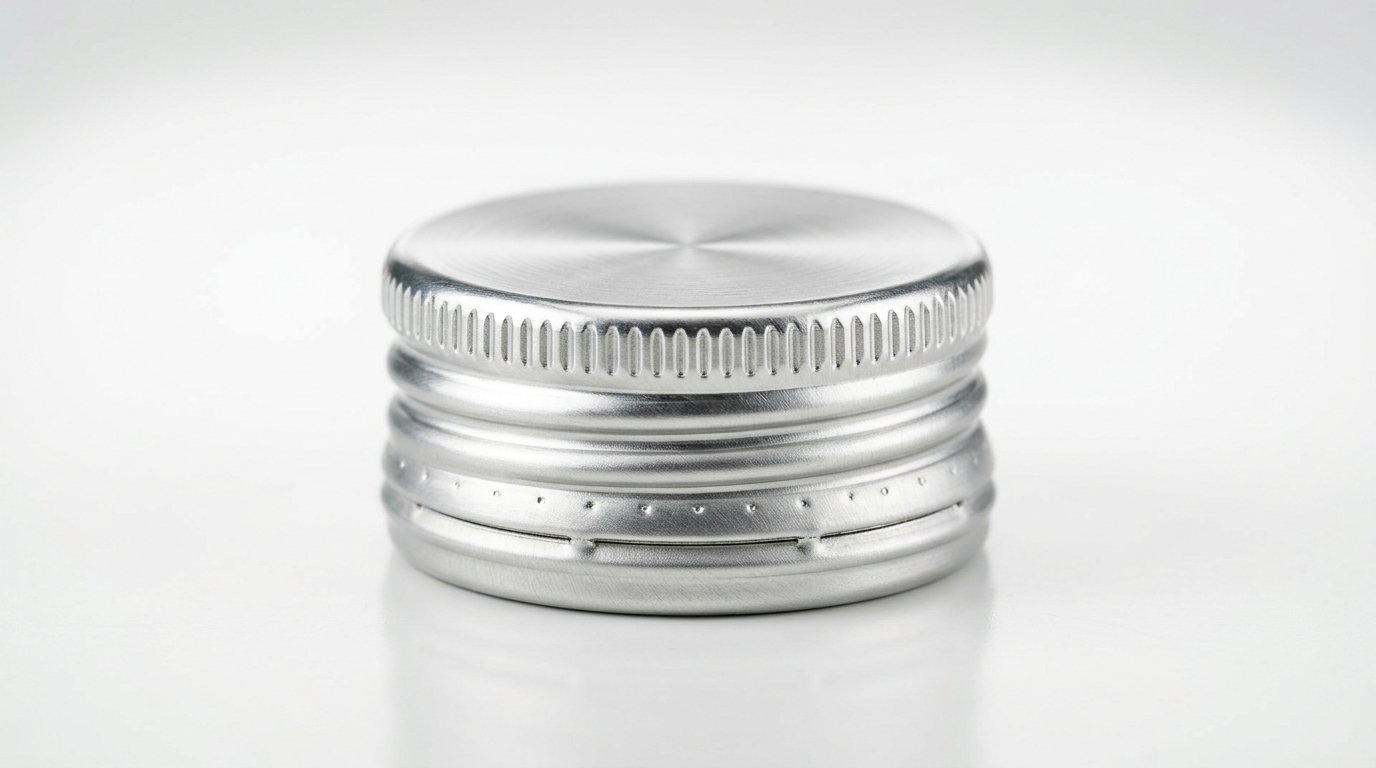

SankalpA 30mm ROPP cap is a roll-on pilfer-proof aluminium closure with a 30 mm neck diameter. It is used mainly for spirits and some beverages where the neck finish calls for a slightly wider mouth than the common 28 mm water closure. Like all ROPP caps, it is rolled onto the bottle at capping, forming its threads and pilfer band on the neck.
The 30 mm ROPP size standard
ROPP caps are described by two numbers: the neck diameter and the cap height, both in millimetres. A 30 mm cap seals a bottle whose neck finish measures 30 mm across. The 30 mm diameter is a recognised standard for aluminium closures, distinct from the 28 mm family used for most packaged drinking water in India.
The diameter is the headline figure, but the height matters just as much, because it sets how far the skirt reaches down the neck and how much thread engagement the cap has.
Common heights and skirt lengths
30 mm ROPP caps are produced in several heights to suit different neck finishes and product categories. Taller skirts give more thread engagement and a longer pilfer band, which suits pressurised or premium products; shorter skirts suit simpler still liquids.
| Spec | Typical 30 mm range | Notes |
|---|---|---|
| Neck diameter | 30 mm | The bottle mouth measurement |
| Cap height | 24 to 60 mm | Varies widely by product |
| Common spirits height | 44 to 60 mm | Longer skirt for tall necks |
| Pilfer band | Scored, break-away | Formed on the bottle at capping |
| Material | Aluminium with liner | Coated shell, sealing liner |
Because heights vary so widely at 30 mm, always confirm the exact neck finish before ordering. A ROPP cap size chart is the quickest way to match diameter and height to your bottle. How to measure a bottle cap size shows how to take the reading, and neck finish codes explains how those numbers are written on a bottle drawing.
Where 30 mm ROPP is used
The 30 mm size is most associated with spirits: whisky, rum, vodka, and gin bottles frequently use a 30 mm aluminium ROPP closure, often with a tall skirt and litho printing for premium branding. Liquor bottle caps in India covers that category in full, including the excise and anti-refill considerations that come with it. The longer skirt suits the taller, decorative necks common on spirit bottles.
Some beverages and speciality liquids also use 30 mm finishes. The choice is driven by the bottle’s neck finish, not by preference: the cap size must match the mould the bottle was made from.
30 mm vs 28 mm ROPP
The 28 mm ROPP cap is the workhorse of packaged drinking water and many carbonated and still beverages in India. The 30 mm size is narrower in use, leaning toward spirits and specific beverage necks. The two are not interchangeable; a bottle designed for a 28 mm finish cannot take a 30 mm cap and vice versa.
If your product is packaged drinking water or a mainstream beverage, the 28 mm family is usually the right starting point. See 28mm ROPP caps for that specification. Choose 30 mm only when the bottle’s neck finish is specified at 30 mm.
R Vision and the 28/15 mm size
R Vision manufactures aluminium ROPP closures in the 28/15 mm size, rated to 8 bar and adhering to USFDA and EU standards. The two products on record, Aqua Cap for packaged drinking water and Bev Cap for beverages, are both 28/15 mm. If your line runs on a 30 mm finish, the size standard above explains the format, but R Vision’s on-record range is the 28/15 mm closure. Talk to the team about your neck finish before specifying.
Frequently asked questions
What is a 30mm ROPP cap?
A 30mm ROPP cap is an aluminium roll-on pilfer-proof closure that fits a bottle with a 30 mm neck diameter. It is rolled onto the bottle at the capping line, where its threads and break-away pilfer band are formed. It is used mainly for spirits and some beverages.
What is the difference between 28mm and 30mm ROPP caps?
The main difference is neck diameter: 28 mm suits most packaged drinking water and beverages, while 30 mm is used more for spirits and specific bottle finishes. They are not interchangeable, because each cap must match the exact neck the bottle was moulded to. Height also varies more widely at 30 mm.
What products use 30mm ROPP caps?
Spirits such as whisky, rum, vodka, and gin most commonly use 30 mm aluminium ROPP caps, often with a tall skirt and printed branding. Some beverages and speciality liquids also use 30 mm finishes. The deciding factor is always the bottle’s neck finish rather than the type of drink.
Does R Vision make 30mm ROPP caps?
R Vision’s products on record are 28/15 mm aluminium ROPP closures: the Aqua Cap for packaged drinking water and the Bev Cap for beverages. If your line uses a different neck finish, it is best to confirm your exact size with the team before specifying. The 30 mm details here describe the general size standard.
Whichever diameter you run, the capping head has to be set for it: the ROPP capping machine guide covers matching rollers to a neck profile. See the 28/15 mm Aqua Cap and Bev Cap pages, browse the size guides on Learn, or contact us to confirm your neck finish.
